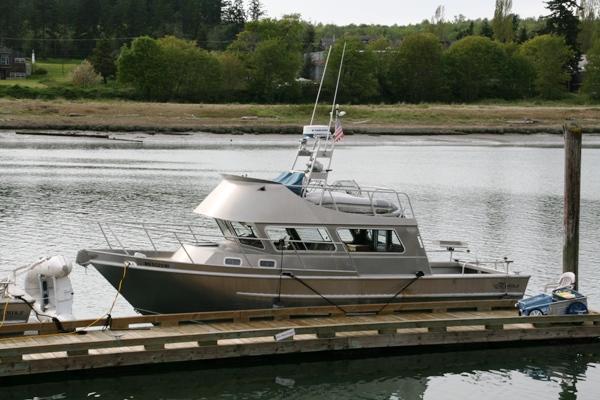

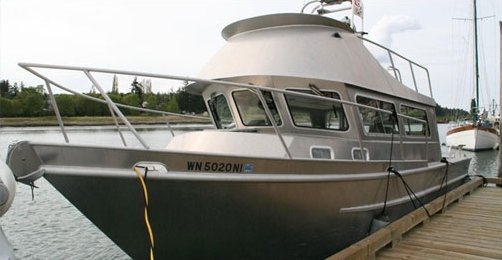

SEAWOLF PILOTHOUSE 33 FLYBRIDGE - STC33026D900

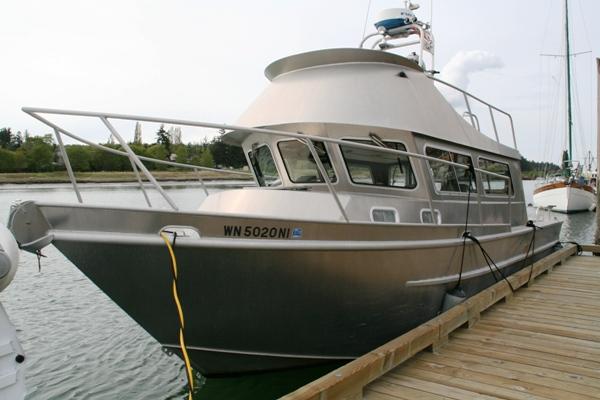

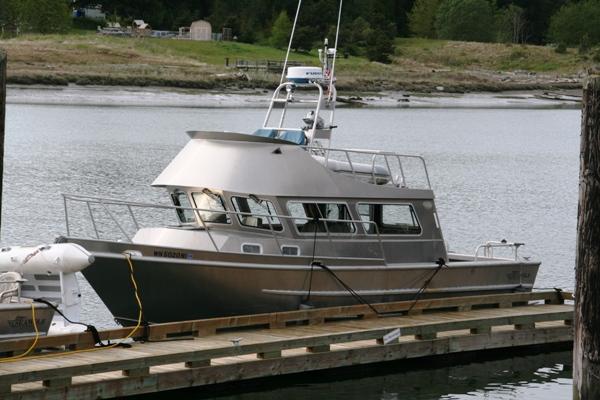

This beautiful 2000 Seawolf pilothouse 33 Flybridge is the builders own personal boat. She was originally, custom built for clients who enjoyed her for two years before moving up to a larger vessel. This exemplifies exactly why at Seawolf, we always build every boat as if were our own. We never know when, or which one may be our own, so we craft each one with the same careful painstaking attention to every detail.
This vessel was designed around the client’s desire for a safe, fast, reliable, efficient and comfortable cruiser to explore the waters of the Pacific Northwest, Inside Passage and Alaska. She exceeded all expectations with a nearly king size forward berth, roomy stand up head with shower, comfortable forward helm chair seating, Wallas diesel stove, Webasto furnace, two large hanging lockers and huge storage drawers and lockers everywhere.

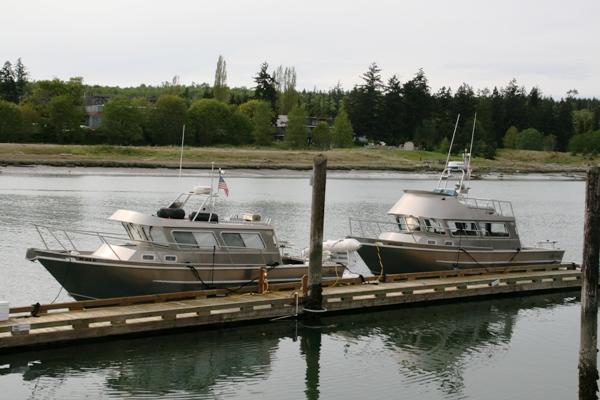

This is the vessel that started our very popular and successful 35 Pilothouse design. The only design change being the additional two feet of aft deck to make the 35. The twin Volvo KAD 43 diesels produce a top speed of 35 knots with an easy cruise at 25 knots burning around ten gallons per hour. With a fuel capacity of 246 gallons you get around 500 miles range with plenty left in the tank.
The engines have around 1,300 hours and both outdrives were replaced with factory new about 100 hours ago. She has had recent and regular service. Everything works as it should and she is ready for your next adventure.
We (and the original owners) have enjoyed this fine vessel immensely from Puget Sound to Alaska and all in between several times but we just do not use her enough. It is time for someone else to make their inside passage dreams come true.
We are offering this vessel at $228,000.
Replacement cost today as equipped is around $398,000.
Sound and solid, reliable and fast. Built to last.
Hull general:
Fuel tank, 246 gallon aluminum, bolt in, w/gauge sender
Fuel tank quick access, Bomar C4810 cast aluminum access hatch on deck
Bilge pumps, 3-Rule 3700 GPH w/automatic float and panel switches
Running lights, Aqua Signal series 20
Deck light, Jabsco 4”x 6” halogen
Horn, AFI 10029 XLP dual trumpet
Steering, Teleflex hydraulic (three station)
Trim-tab system, Boat Leveller Insta Trim 18” x 12”
Bowrails, welded aluminum 1” s-40 pipe
Cockpit handrails, welded aluminum 1” s-40 pipe
Flybridge handrails, welded aluminum 1” s-40 pipe
Radar arch, welded aluminum 1-1/2” s-40 pipe with antenna, GPS
radar and spotlite mounts
Anchor roller, welded aluminum with 3” Marithane roller
Anchor rode locker, below deck with drains
Cleats, 7, cast aluminum nine inch, welded
Fairlead chocks, 2- 5” one each side on bow
Zinc anode, one on hull bolt on

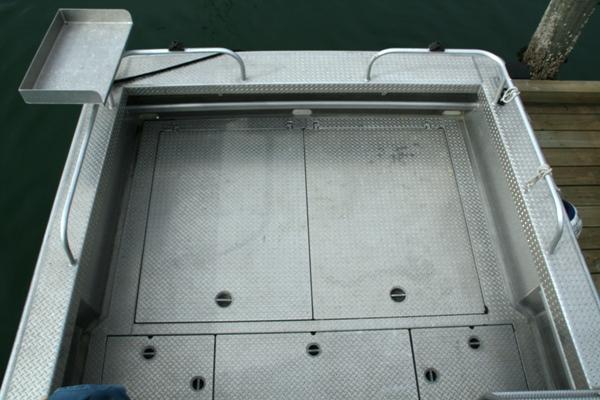

Storage holds, aft deck, one each side, approx. 36” long x 29" wide x 15" deep
Storage hold, aft deck, one on center approx 36” long x 48” wide x 14” deep
Storage holds, all self draining overboard
Engine access hatches, 2-with gas lifting struts
Swimstep, welded 28” with transom grab handles

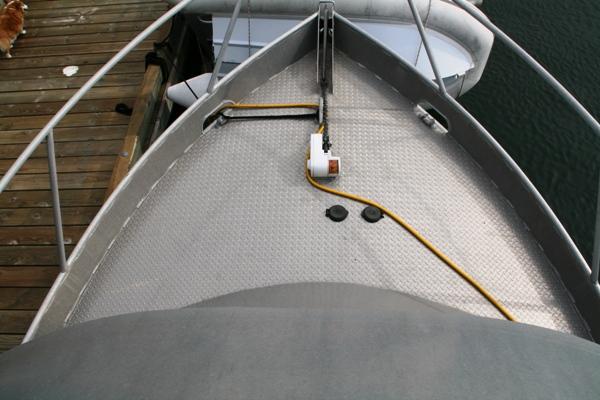

Windlass; Lewmar 1000H with deck mount foot switches
Doors and windows All heavy duty aluminum frame Diamond /Seaglaze
Cabin heater, engine heat, Heatercraft 400H
Furnace, Webasto AT 3500 diesel, thermostat control with 4 outlets
Extensive acoustic insulation throughout
Electrical System DC:
Battery, engine starting, one Exide gp 31HD 1025 CCA
Battries, house, 2-Exide NG8D deep cycle (400 amp hours)
Battery switches, Blue Sea systems heavy duty with emergency parallel
Automatic charge relay
Circuit breakers, Blue Sea Systems 185 series
Electrical panels, Blue Sea Systems 8023 with 8 toggle circuit breakers each
Dash switch panel, 10 Contura rocker switch with push-to-reset circuit breakers
12V DC outlets, two at dash one at companion seats
Wiring, all fine stranded marine grade duplex tinned copper
Connectors and fittings, all “Ancor” marine grade
Electrical system AC:
Shore power system, 110 volt, 30 Amp,
Power inlet, Marinco 303 ELB
Electrical panel AC, Blue Sea Systems 2027 with main breaker, and polarity indicator
Electrical outlets, duplex, one at galley, one at dinette, one at companion seats
Shore power cord, 50' Marinco
Battery charger, Statpower Truecharge 40 amp
All fine stranded marine grade triplex tinned copper wire
All Ancor marine grade connectors and fittings
Fresh Water System:
Fresh water tank, 50 gallon aluminum, bolt in
Fresh water pump, Jabsco 4.5 GPM automatic
Galley sink, Polar stainless, single 9”deep
Galley faucet, Skandvic 10488 single lever
Head sink, Polar stainless, oval 9” x 12”
Head faucet Skandvic 10461 faucet / shower combo with navy valve
Water heater, Seaward 12 gallon heat exchanger/ 120 volt
Shower, Heatercraft 303SB stow away
Shower drain system, Attwood 4143-4 automatic
Deckwash, fresh water spigot
Head system:
Toilet, Groco HF-B manual
Holding tank, 20 gallon heavy duty rotomold plastic
Waste discharge pump, manual guzzler 1 ½” diaphragm
Deck discharge for dockside vacuum system
Cabin / Interior:

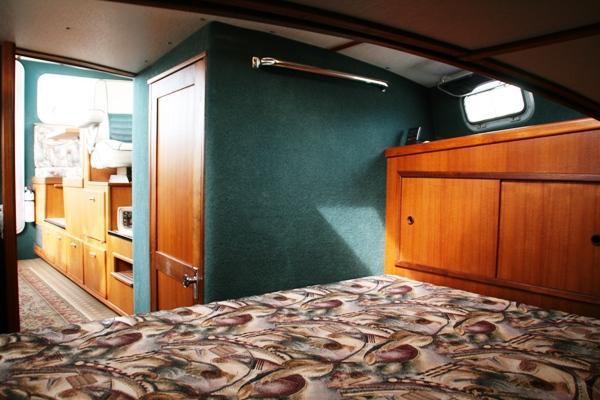

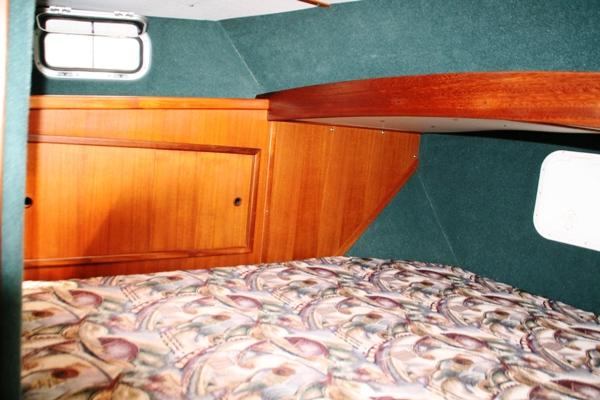

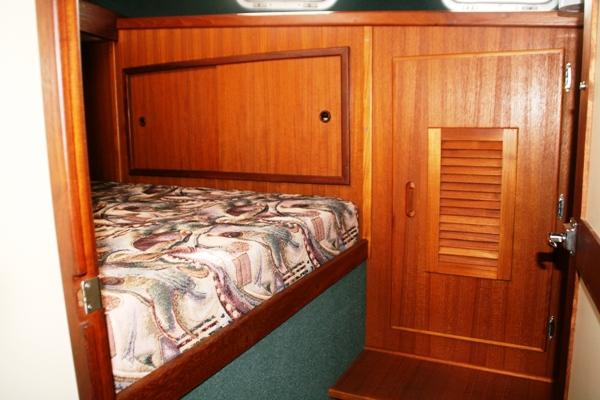

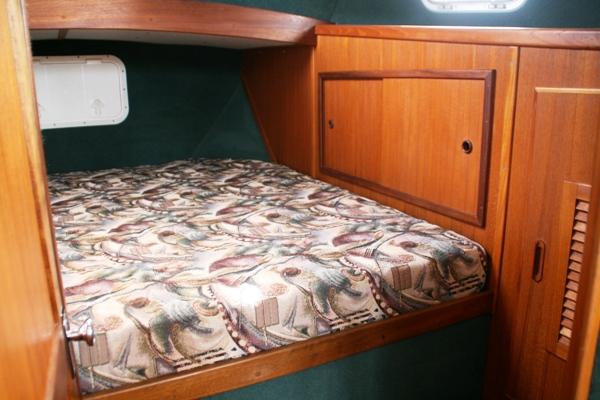

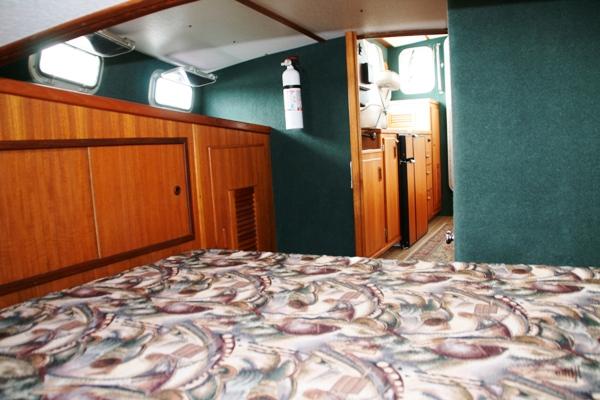

Forecabin, 8’6”length: (approx.)

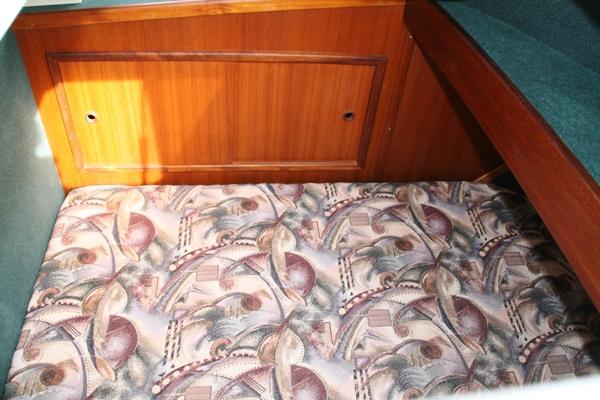

King berth with upholstered 6"cushion with 3” eggcrate
Panel headliner with acoustic foam insulation
Cabin lights, 2-red / white
Access to anchor locker
Storage shelf, one fwd, one each side
Storage lockers, one each side of berth with sliding doors and shelf
Hanging locker, starboard side with storage drawer under
Head compartment portside, painted
Teak entry door with Perko latch with lock
Storage locker with teak louver door
Toilet paper holder, waterproof, automatic retracting
Stainless, oval sink with Scandvic combination faucet/ shower
Stainless grab bars
Light, red / white
Portlites, 4-Lewmar Ocean series, opening with screens
Skylight hatch, Bomar 1029-10 with screen
Marine carpet hull liner
Teak trim
Main cabin, pilothouse style 10’8”length (approx);
Helmstation, starboard side with teak dash, hydraulic helm,
Mathers MMC electronic controls
Full engine instrumentation
Drive trim and trim tab controls
Spotlight control
Helmseat, Bentleys Rivermaster with folding armrests
Storage, cabinet under helmseat with one shelf and door
Storage, drawer under helm floor
Galley starboard aft includes;
Sink, stainless 9” deep single with Skandvic single lever faucet
Cabinet below galley sink with one shelf and door
Nova-Kool 7.5 double door refrigerator/ freezer
Wallas diesel galley stove with heat blower lid
3 storage drawers
Hanging locker
Teak cup and dish rack
Teak paper towel and liquid soap holders
Dinette, portside aft, convertible to berth
Dinette cushions 4” with cloth upholstery
Companion seats portside forward, 2-Bentleys Rivermaster with folding armrests
Storage, under dinette bench seats with top access
Storage under companion seats with drop down door access
Storage, chart storage tubes under companion seats
Storage, shotgun rack, double, under companion seats
Storage under companion floor with top access
Storage drawers (four) under dinette 16” x 30” x 9”
Windows, Diamond Sea Glaze Marine, heavy duty aluminum frame ¼” tempered glass.
3-forward windows D5 fixed
2 side slider windows D15 with screens
2 side windows D5 fixed
2 rear windows D5 fixed
Door, Diamond Sea Glaze Marine, R150 heavy duty aluminum, hinged
Trio-Ving stainless lockset with deadbolt
D5 halfdrop sliding window with screen
Windshield wipers, 3 heavy duty
Windshield wiper arms, AFI premium, stainless, pantographic
Headliner, acoustic soft touch
Acoustic insulation, Sounddown foam with reinforced mylar
Cabin lights, 4 red/ white
Flooring, heavy duty rubber
Teak trim
Cabin heater, engine heat, Heatercraft 400H
NOTE:
All interior framing for all cabinetry and components are constructed of aluminum,
welded in place to the hull structure for maximum strength, durability and versatility.

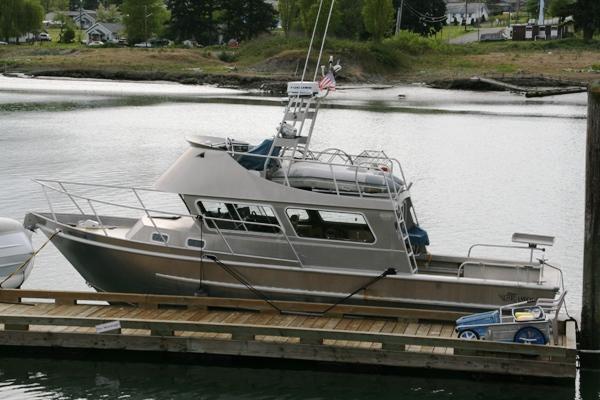

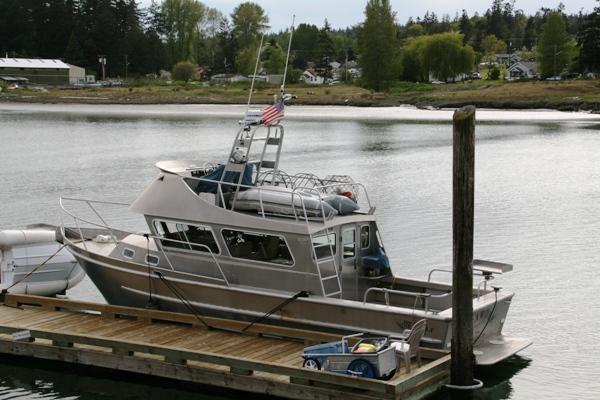

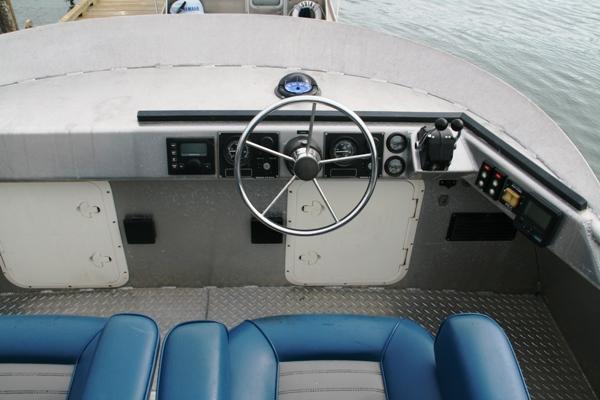

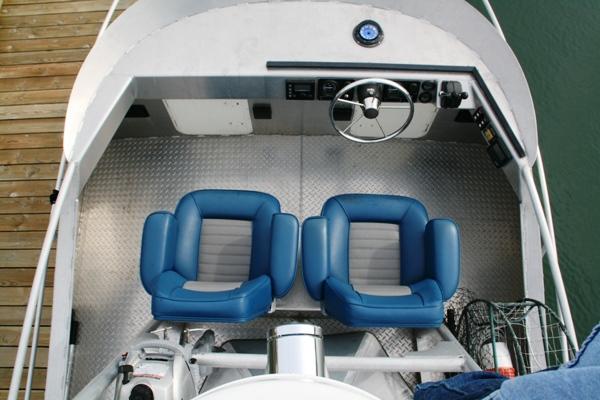

Flying bridge:
Cabin roof reinforcement
1/8” 5052 treadplate roof
Tall fold down arch with Radar, GPS, VHF antenna and spotlight mounts
Flying bridge hand rails and ladder, welded aluminum

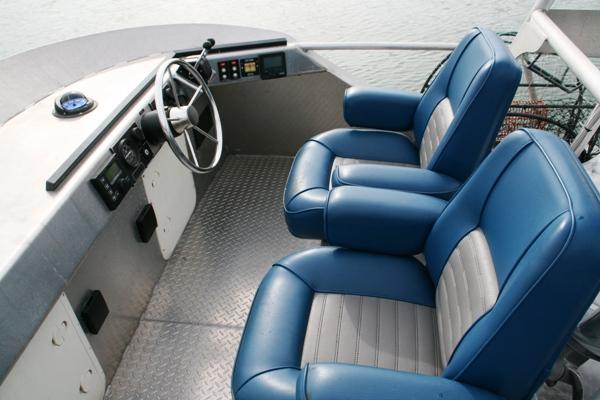

Flybridge seats, 2-Bentleys Rivermaster helmseats with fixed arms
Storage, under helmseats with bomar hatch access
Console with hydraulic steering, Mathers MMC electronic controls and tachometers
Drive trim and trim tab control
Compass, Ritchie ss-2000
Autopilot control
Huge storage area under console with 2 Bomar hatch access
Sunbrella covers for seats and instrument console
Dinghy tie downs
Aft helm:
Steering helm, hydraulic
Engine controls, Mathers MMC
Engine stop switches
Storage, shelf
Electronics:
Radar, Furuno 1936
Depth sounder, Furuno 667,
GPS, Furuno GP 30
Autopilot, Simrad Robertson AP22 with controls at main helm and flybridge
VHF, Icom M504
VHF remote, Icom M157 (flying bridge)
Compass, KVH Azimuth 1000 (main station)
Compass, Ritchie SS-2000 (flying bridge)
Power:

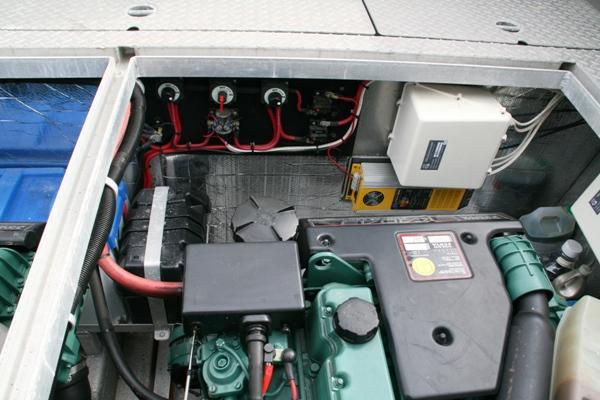

2-Volvo Penta KAD 43 230 hp turbo diesel Duoprop I/O
Instrument panels with tachometer, hourmeter, engine temp, oil pressure,
fuel level, voltmeter, drive trim controls and gauges and wiring harness
Stainless propellers
Fresh water cooling
2-Racor 500 water separating fuel filters
Mathers MMC electronic engine controls (three station)
Teleflex hydraulic steering, with engine power assist
Engine compartment sound insulation
