The fearlessly functional Valkyrie is uncompromising in quality, price and value.

With the same heavy-duty fully welded hulls as our Pilohouse 25-28 models, the Valkyrie has all of the quality and craftsmanship of our larger boats in a very economical package. No slotted extrusions, completely self-bailing welded aluminum decks--this boat takes the helm when compared to the cookie-cutter production boats!

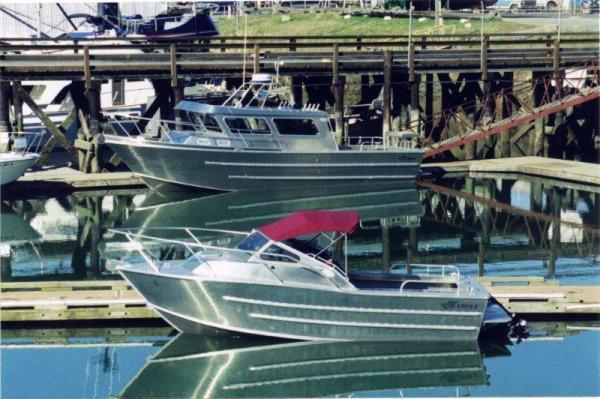

The Valkyrie is available as an open skiff, runabout style, open-deck cuddy or hardtop.


SEAWOLF VALKYRIE 22-26 CUDDY
Specifications
Length 22’- 26’ in one foot increments
Beam 8’6”, or 8'10"
Deadrise aft 12 degrees
Deadrise fwd 40 degrees
Bottom .250” 5086 Aluminum
Sides .190” 5086 Aluminum
Side Height aft 41”
Decks .190” 5052 Aluminum (Treadplate)
Cabin sides and bulkheads .160” 5052 Aluminum
Cabin roof .125” 5052 Aluminum
Fuel capacity 92 gallons
Weight, 22 cuddy, dry with Volvo 4.3 GXI 3,600 lbs

Hull:

  • Cockpit deck, all welded aluminum, self-draining
  • Side storage trays in cockpit with boarding steps
  • Multiple, sealed air chamber floatation
  • Bowrails and cockpit handrails 1” aliminum pipe, welded
  • Anchor roller, ¼” plate, welded with 3” roller
  • Anchor rode locker, with drains and access hatch
  • Swimstep, 24” welded, with welded transom grab handles
  • Cleats, seven 8” cast aluminum, welded
  • Fairlead chocks ,cast aluminum, welded
  • Engine hatch, hinged, weather tight
  • Fuel tank, one, 92 gallon, bolt in, w/gauge sender
  • Fuel tank access, bolt down plate on deck to access entire fuel tank
  • Fuel tank quick access, Bomar C4808 cast aluminum access hatch on deck
  • Bilge pumps, 2-Jabsco 1500 GPH w/automatic float and panel switches
  • Bilge pump, one Whale Supersub w/automatic float and panel switch
  • Trim-tab system, Boat Leveler 9" x 12"
  • Running lights, Aqua Signal series 20
  • Extensive acoustic insulation throughout
  • 1-Zinc anode on hull
  • Large comfortable finished forecabin
  • Available with choice of gas or diesel I/O, or Outboard power
  • Unlimited options available
  • Custom configured to suit your needs

Electrical System:

  • Batteries, 2-Exide NG24 D 12 Volt Deep cycle (105 amp hours each)
  • Battery switch, Blue sea systems heavy duty
  • Main DC circuit breaker, Blue Sea Systems 185 series
  • Electrical panel, Blue Sea Systems 8023 with 8 toggle circuit breakers
  • Dash switch panel, 10 Contura rocker switch with push-to-reset circuit breakers
  • 12V DC outlet, one at dash
  • Wiring, all fine stranded marine grade duplex tinned copper
  • Connectors and fittings, all “Ancor” marine grade

Utility

The Valkyrie Utility is a great day trip fishing boat with pedestal seats, a windscreen and all of the Seawolf quality and reputation at an amazing choice for a custom built boat.

Cuddy Cabin

The Valkyrie Cuddy adds a sleeping berth to the utility model .

Hardtop

The Valkyrie Hardtop has the same helm and companion seat as in the other Valkyrie models, but has two additional inboard facing bench seats. Compare these boats in terms of quality and price to the large manufactures such as Hewescraft Pacific Series and you will be pleasantly surprised.

Power and Performance:

Single or Twin Outboards of your choice

 or

 Volvo Penta 4.3 GL DP (225 hp) Duoprop I/O with aluminum propset

  • Instrument panel with tachometer, hourmeter,
  • engine temp, oil pressure, fuel level, voltmeter,
  • drive trim gauge and wiring harness
  • Single station, Volvo sidemount control with Teleflex “Extreme” cables
  • Teleflex Hydraulic steering with power assist
  • Fresh water cooling
  • Bilge ventilation blower
  • Racor 320 water separating fuel filter
  • Engine compartment with acoustic insulation
  • Weather tight engine box with acoustic insulation






View other Seawolf Models:

Custom Options
